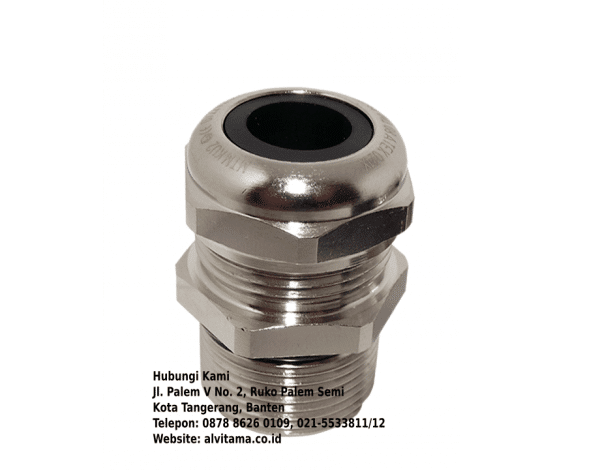

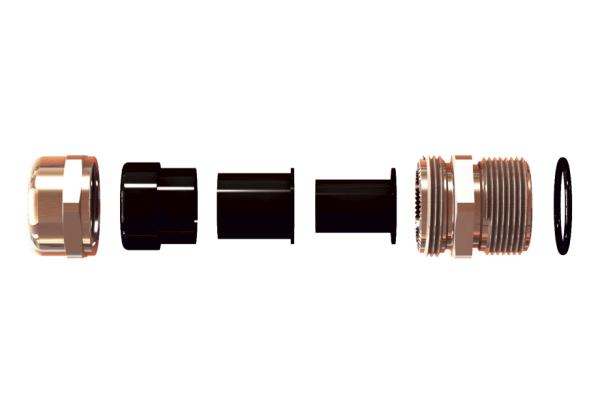

Jual Cable Glands Unarmoured Type CG
Cable Glands Unarmoured Type CG dapat digunakan di pabrik kimia dan petrokimia, platform lepas pantai, kilang dan industri lainnya dimana terdapat gas dan debu yang mudah terbakar.
Cable Glands Unarmoured Type CG dirancang untuk memenuhi persyaratan sebagai pengunci dan penyambung kabel antar komponen di dalam maupun di sekitar area berbahaya pabrik.
Spesifikasi Keamanan:
certificate number: IMQ 12 ATEX 010X TC RU C-IT.AA87.B.00509
marking:
II 2GD Ex IIC Gb – Ex e IIC Gb – Ex tb IIIC Db
ambient temperature: –60°C + 180°C (polyuretane gasket) -40°C + 100°C (silicone gasket)
degree of protection: IP66 / IP68
conformity: Directive ATEX 2014/34/EU TP TC 012/2011
standards: IEC-EN60079-0 IEC-EN60079-1 IEC EN60079-7 IEC-EN60079-11 IEC-EN60079-31
ГОСТ 31610.0 ГОСТ IEC 60079-1 ГОСТ Р МЭК 60079-7 ГОСТ 31610.11 ГОСТ Р МЭК 60079-31
category: suitable for Zone 1 – 21 (gas) and Zone 2 – 22 (dust)

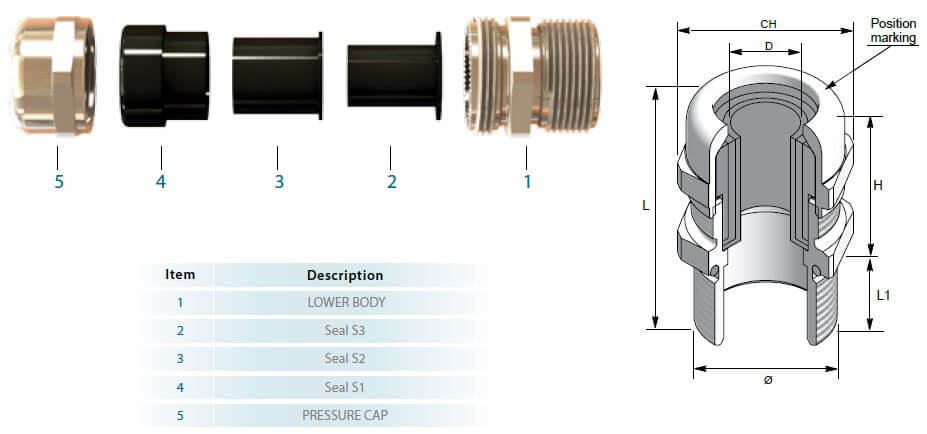

| product code | Ø | D | H | L | L1 | CH | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Metric | NPT | min | max | min | min | min | 1 | 2 | ||
| CG 01 | M16 x 1.5 | 3/8″ | 3 | 12 | 20 | 40 | 16 | 22 | 22 | |
| CG 1 | M20 x 1.5 | 1/2″ | 3 | 12 | 20 | 40 | 16 | 22 | 22 | |
| CG 12 | M20 x 1.5 | 1/2″ | 10 | 16 | 20 | 45 | 16 | 28 | 28 | |
| CG 2 | M25 x 1.5 | 3/4″ | 10 | 18 | 20 | 40 | 16 | 28 | 28 | |
| CG 23 | M25 x 1.5 | 3/4″ | 14 | 20 | 25 | 50 | 16 | 35 | 35 | |
| CG 3 | M32 x 1.5 | 1″ | 14 | 24 | 45 | 47 | 20 | 35 | 35 | |
| CG 34 | M32 x 1.5 | 1″ | 22 | 28 | 39 | 57 | 20 | 45 | 45 | |
| CG 4 | M40 x 1.5 | 1″ 1/4 | 22 | 32 | 39 | 47 | 20 | 45 | 45 | |
| CG 45 | M40 x 1.5 | 1″ 1/4 | 26 | 34 | 32 | 57 | 20 | 50 | 50 | |
| CG 5 | M50 x 1.5 | 1″ 1/2 | 26 | 35 | 32 | 48 | 20 | 55 | 50 | |
| CG 56 | M50 x 1.5 | 1″ 1/2 | 35 | 42 | 38 | 65 | 20 | 55 | 58 | |
| CG 6 | M63 x 1.5 | 2″ | 35 | 45 | 38 | 55 | 20 | 68 | 58 | |
| CG 67 | M63 x 1.5 | 2″ | 46 | 56 | 25 | 64 | 20 | 75 | 80 | |
| CG 7 | M75 x 1.5 | 2″ 1/2 | 46 | 62 | 25 | 70 | 26 | 80 | 80 | |
| CG 78 | M75 x 1.5 | 2″ 1/2 | 60 | 69 | 36 | 81 | 26 | 95 | 95 | |
| CG 8 | M90 x 1.5 | 3″ | 60 | 75 | 36 | 81 | 26 | 95 | 95 | |
| CG 810 | M90 x 1.5 | 3″ | 75 | 82 | 38 | 83 | 26 | 105 | 105 | |
| CG 10 | M100 x 1.5 | 4″ | 75 | 85 | 38 | 83 | 26 | 115 | 105 | |
| CG 11 | M110 x 1.5 | 4″ | 85 | 95 | 38 | 83 | 26 | 115 | 115 | |
Pengiriman and Stock Unit:
*) Stock unit Ready (selama belum terjual)
*) Delivery untuk wilayah Jabodetabek kami siapkan pengiriman, untuk wilayah Luar Kota dan Antar Provinsi pengiriman via Ekspedisi dan belum termasuk biaya kirim.
