Jual Panel Box Explosion Proof ( Junction Box ) Type EJB-S
Panel Box Explosion Proof ( Junction Box ) Type EJB-S biasanya digunakan di pabrik kimia dan petrokimia, platform lepas pantai, kilang dan industry lainnya dimana terdapat gas dan debu yang mudah terbakar.
Panel Box Explosion Proof ( Junction Box ) Type EJB-S dirancang untuk memenuhi persyaratan untuk aplikasi distribusi tenaga, pemantauan dan pemberian sinyal, serta fungsi listrik lainnya di dalam area berbahaya pabrik.
Fungsi:
Panel Box Explosion Proof ( Junction Box ) Type EJB-S biasanya digunakan untuk tempat-tempat sebagai berikut:

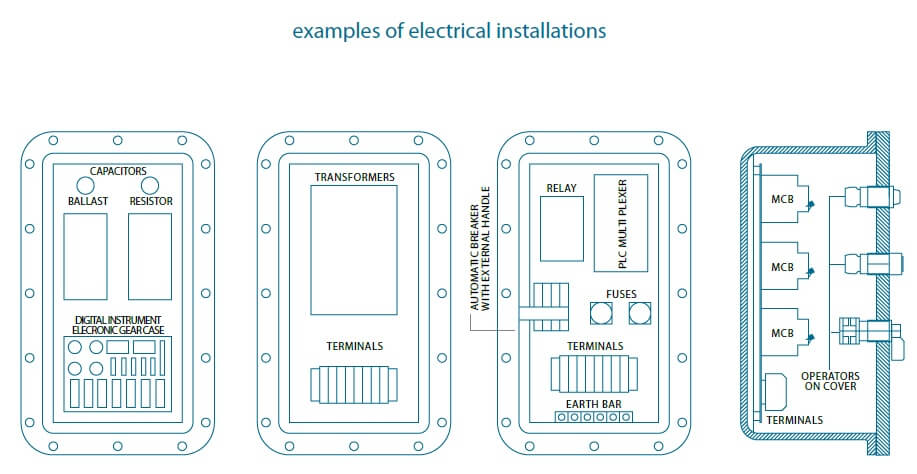

Stasiun Kontrol, Pemutus Sirkuit, Kotak Terminal, Unit Panggilan Darurat, Perakitan Instrumen, Saklar dan Ganti Saklar, Kontrol Pencahayaan, Listrik Perumahaan dan Kontainer Baterai.
Spesifikasi Perlindungan:
certificate number: IECEx IMQ 14.0010X IMQ 11 ATEX 031 X TC RU C-IT.AA87.B.00509
marking: II 2GD Ex db [ia Ga]/[ib Gb] IIB+H2 T4/T5/T6 Gb Ex tb IIIC T135/T100/T85°C Db
ambient temperature: –60°C +60°C
degree of protection: IP66
conformity: Directive ATEX 2014/34/EU TP TC 012/2011
standards: IEC-EN60079-0 IEC-EN60079-1 IEC-EN60079-11 IEC-EN60079-31
ГОСТ 31610.0 ГОСТ IEC 60079-1 ГОСТ 31610.11 ГОСТ Р МЭК 60079-31
category: suitable for Zone 1 – 21 (gas) and Zone 2 – 22 (dust)
Material Specification:
- body and cover of stainless steel;
- external epoxy powder coating RAL 7001 (upon request);
- internal anticondensation coating and drain and breather valves (upon request);
- anti-loosening bolts and earthing screws of stainless steel;
- gasket on cover of silicone;

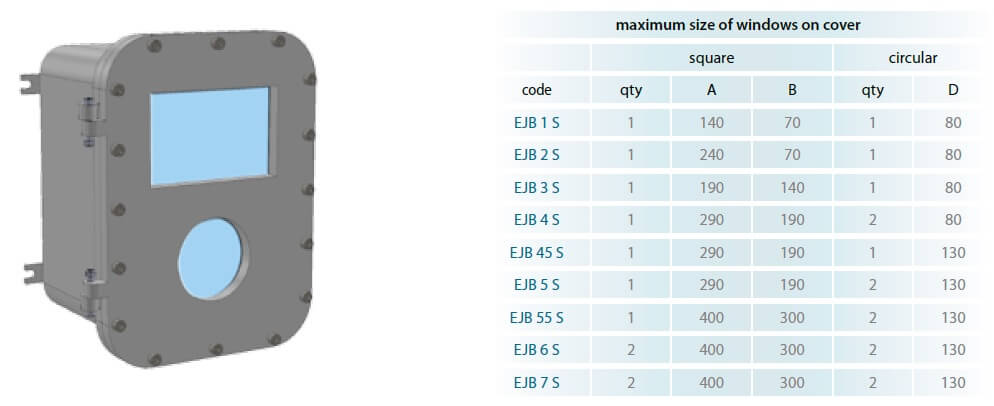

- window of thermoresistant glass sealed with auto-leveling silicone.

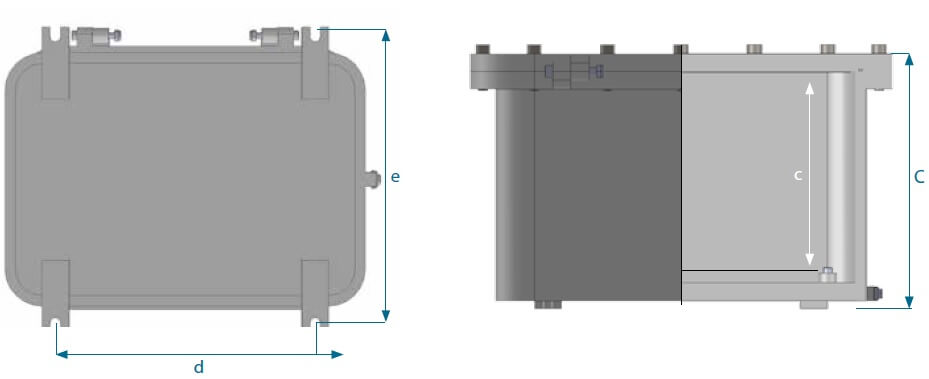

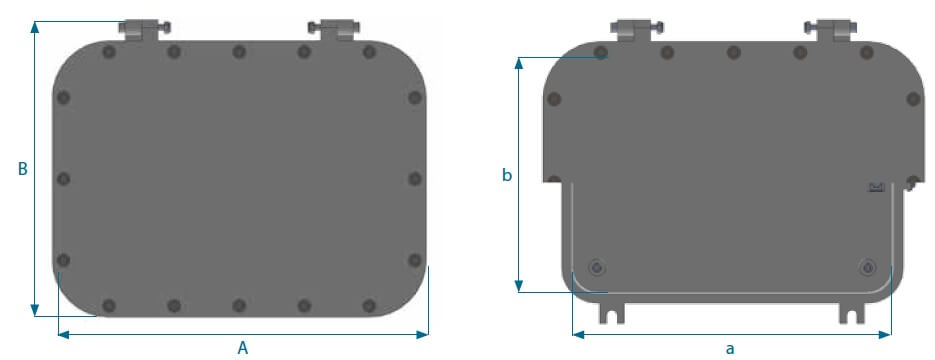

product code |
overall dimension | internal dimensions | fixing dimensions | weight | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|
A | B | C | a | b | c | d | e | screw | kg | ||
EJB 1 S | 300 | 230 | 200 | 220 | 150 | 150 | 160 | 230 | M10 | 35 | |
EJB 2 S | 390 | 230 | 210 | 310 | 150 | 160 | 250 | 230 | M10 | 44 | |
EJB 3 S | 390 | 300 | 260 | 310 | 220 | 210 | 250 | 300 | M10 | 60 | |
EJB 4 S | 460 | 340 | 280 | 380 | 260 | 230 | 320 | 340 | M10 | 80 | |
EJB 45 S | 540 | 380 | 280 | 460 | 300 | 230 | 400 | 380 | M10 | 95 | |
EJB 5 S | 640 | 460 | 330 | 560 | 380 | 280 | 500 | 460 | M10 | 144 | |
EJB 55 S | 720 | 540 | 350 | 620 | 440 | 300 | 540 | 540 | M12 | 189 | |
EJB 6 S | 800 | 600 | 440 | 680 | 480 | 390 | 600 | 700 | M12 | 250 | |
EJB 7 S | 1000 | 700 | 445 | 880 | 580 | 395 | 800 | 700 | M12 | 358 |
