Jual Signal Bell Explosion Proof Type dHW

Jual Signal Bell Explosion Proof Type dHW

Rincian Singkat Signal Bell Explosion Proof Type dHW:

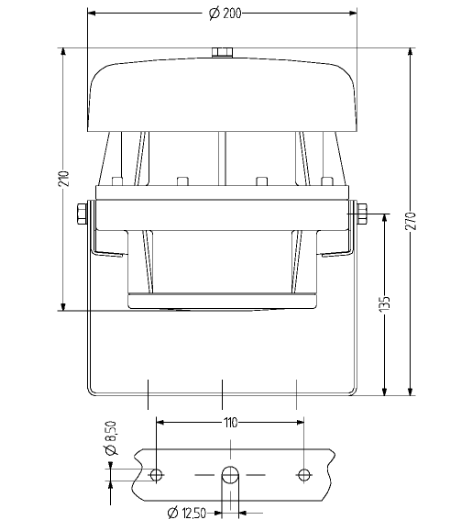

Housing: Ø 200 mm, glass-fibre-reinforced polyester black (RAL 9005)
Type of mounting: horizontal, vertical or any, sound outlet preferably at front or bottom
Cable entry: 1x cable gland M20 x 1.5, 1x M20 x 1.5 with sealing plug
Connection technology: 1.5 mm² fine wire and 2.5 mm² single wire
Tone: typical bell tone
Volume max. 105 dB
Duty cycle: 100 %
Operating temperature: -20 °C / +40 °C
Degree of protection: IP66
Approval: PTB 01 ATEX 1134
Insulation class: II
Weight: 5,5 kg

Description

Jual Signal Bell Explosion Proof Type dHW

dHW Explosion-proof signal bell

Signal Bell Explosion Proof Type dHW dapat digunakan di pabrik kimia dan petrokimia, platform lepas pantai, kilang dan industri lainnya dimana terdapat gas dan debu yang mudah terbakar.

Signal Bell Explosion Proof Type dHW, dirancang untuk memenuhi persyaratan untuk sirine pemberitahuan di dalam maupun di sekitar area berbahaya pabrik.

Spesifikasi Keamanan:

Housing: Ø 200 mm, glass-fibre-reinforced polyester black (RAL 9005)
Type of mounting: horizontal, vertical or any, sound outlet preferably at front or bottom
Cable entry: 1x cable gland M20 x 1.5, 1x M20 x 1.5 with sealing plug
Connection technology: 1.5 mm² fine wire and 2.5 mm² single wire
Tone: typical bell tone
Volume max. 105 dB
Duty cycle: 100 %
Operating temperature: -20 °C / +40 °C
Degree of protection: IP66
Approval: PTB 01 ATEX 1134
Insulation class: II
Weight: 5,5 kg

Pengiriman and Stock Unit:

*) Stock unit Ready (selama belum terjual)

*) Delivery untuk wilayah Jabodetabek kami siapkan pengiriman, untuk wilayah Luar Kota dan Antar Provinsi pengiriman via Ekspedisi dan belum termasuk biaya kirim.



Informasi lebih lanjut dan pembelian dapat menghubungi :

Dimensi Saptakarsa

Hp: 0878 8626 0109

Tlp: 021 5533811/12

Website: agenexplosionproof.com
